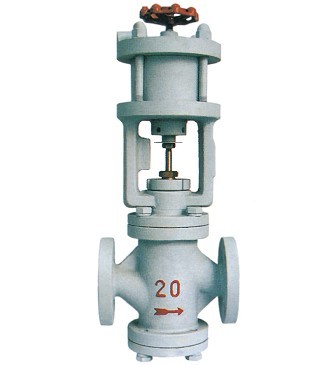

CYLINDER-TUPE CONTROL VALVE
Designing Specification
Temperature range：0~180℃
Working pressure：25kg
Operating pressore：3~10bar
|

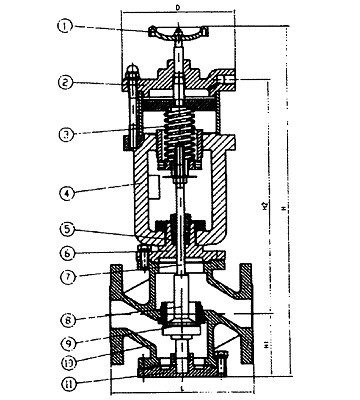

BODY
PARTS NAME
|
WCB
|
SUS304、316
|
|
1
|
HANDLE WHEEL
|
ASTMB85
|
ASTMB85
|
|
2
|
CYLINDER
|
STKM13C
|
STKM13C
|
|
3
|
ACTUATOR STERN
|
SS41
|
SS41
|
|
4
|
YOKE
|
FC-250
|
FC-250
|
|
5
|
V-PACKING
|
PTFE
|
PTFE
|
|
6
|
BONNET
|
WCB
|
WCB
|
|
7
|
PLUG STERN
|
SUS304、316
|
SUS304、316
|
|
8
|
PLUG
|
SUS304、316
|
SUS304、316
|
|
9
|
SEAIG RING
|
PTFE
|
PTFE
|
|
10
|
BODY
|
WCB
|
WCB
|
|
11
|
BOTTOM FLANGE
|
WCB
|
WCB
|
|
VALVE SIZE
|
L
|
H1
|
H2
|
H
|
D
|
|
mm
|
inch
|
|
20
|
3/4
|
160
|
90
|
320
|
410
|
120
|
|
25
|
1
|
160
|
90
|
320
|
410
|
120
|
|
32
|
1-1/4
|
160
|
90
|
320
|
410
|
120
|
|
40
|
1-1/2
|
190
|
100
|
400
|
500
|
150
|
|
200
|
|
50
|
2
|
210
|
108
|
412
|
520
|
150
|
|
220
|
|
65
|
2-1/2
|
230
|
120
|
440
|
560
|
175
|
|
80
|
3
|
260
|
130
|
450
|
580
|
175
|
|
100
|
4
|
280
|
145
|
515
|
660
|
205
|
|
| |
|
|
|
|
| |
|
