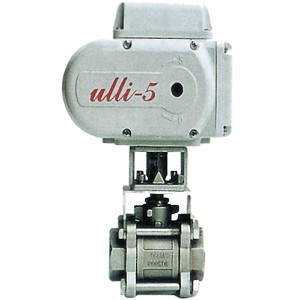

3PC MOTOR-DRIVER BALL VALVE

STANDARD
Valve serial：Q913F/Q953F/Q963F
Nominal pressure：1000PSI WOG/6.4Mpa
End connection：THREAD、SW、BW
Connection dimension：1/4"~4"
Body material：WCB、CF8、CF8M
ELECTRIC ACTUATOR
Purpose：ON/OFF or adjusting type
Power：AC110V/220V/380V、50/60Hz
Input signal：1~10/4~20mA、1~5V
Output signal：4~20mA position signal、switch contact signal
Normal temperature：-30℃~+80℃
Protection：IP65 Overheat protection
Manual：With handle
Degree：0~90°
Optional
