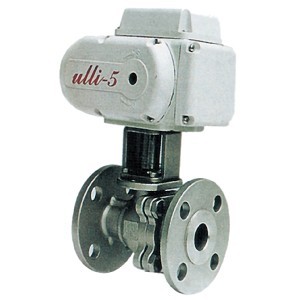

2PC MOTOR-DRIVER FLANGE BALL VALVE
STANDARD
Valve serial:Q941F/ANSI-Q941F/JIS-Q941F/DIN-941F
Nominal pressure:1.6/2.5/4.0Mpa、150Lb/300Lb、10K/20K
Connection dimendion:1/2"~8"
Body material:WCB、CF8、CF8M、CF3、CF3M
ELECTRIC ACTUATOR
Purpose:ON/OFF or adjusting type
Power:AC110V/220V/380V、50/60Hz
Input signal:0~10/4~20mA、1~5V
Output signal:4~20mA position signal switch contact signal
Normal temperature:-30℃~+80℃
Protection:IP65 overheat protection
Manual:With handle
Degree:0~90°
Optional |
